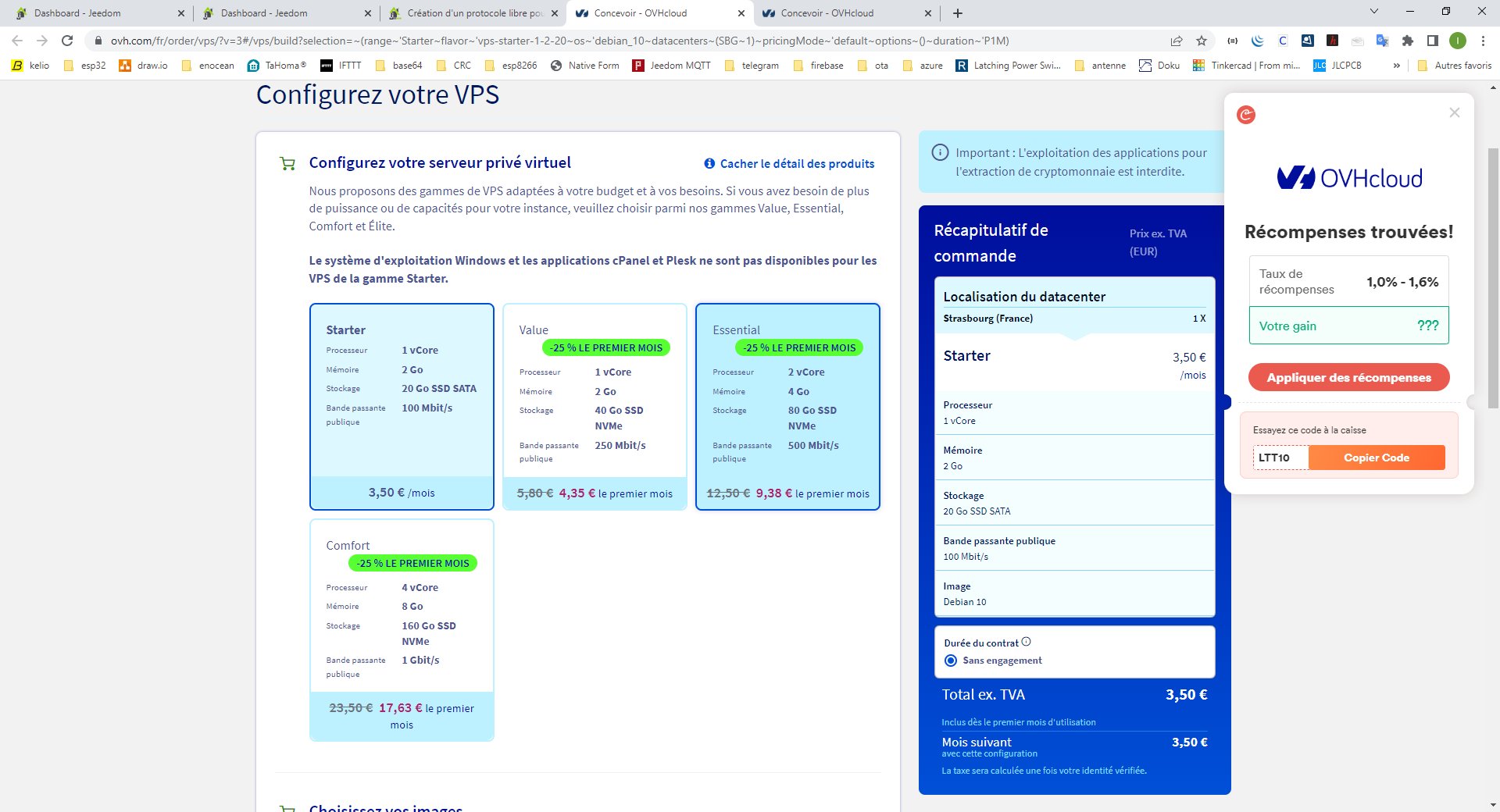

pour rappel c’est un serveur de test que je fermerai un jour, il ne faut pas prendre ce serveur comme quelque chose à long terme
bref
pour la passerelle je vous donne ma solution
surement adaptable avec d’autre matériel

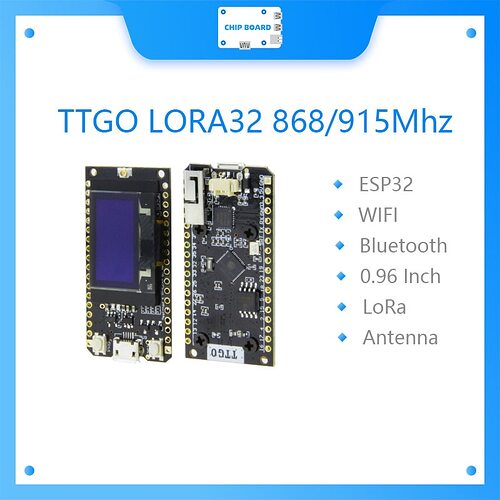

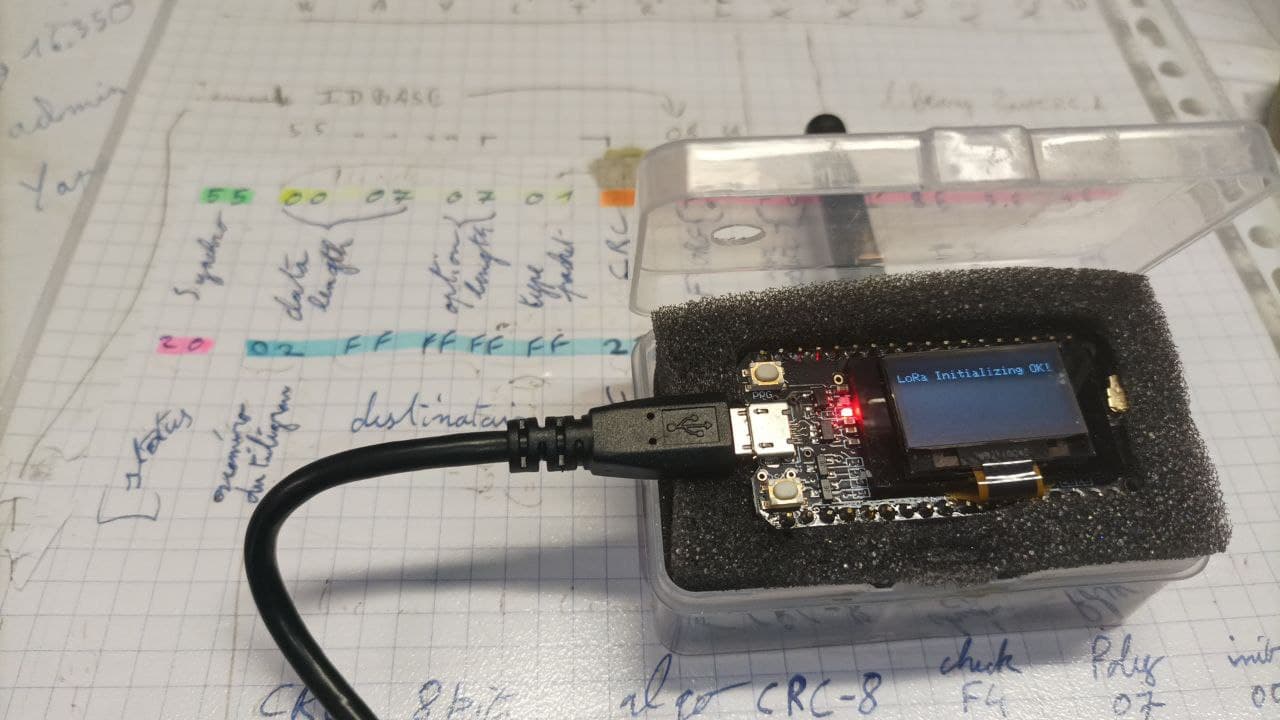

j’ai pris 2 ttgo lora32, qui étaient bien moins cher en début d’année
tranformé en passerelle LoRa MQTT
pour le code il est sous arduino, simple gratuit
//Libraries for LoRa
#include <SPI.h>
#include <LoRa.h>
//Libraries for OLED Display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <WiFi.h>
#include <ESP32Ping.h>
#include <PubSubClient.h>
//#include "EEPROM.h"
//#define EEPROM_SIZE 128
#include <Preferences.h>
#include <esp_int_wdt.h>
#include <esp_task_wdt.h>

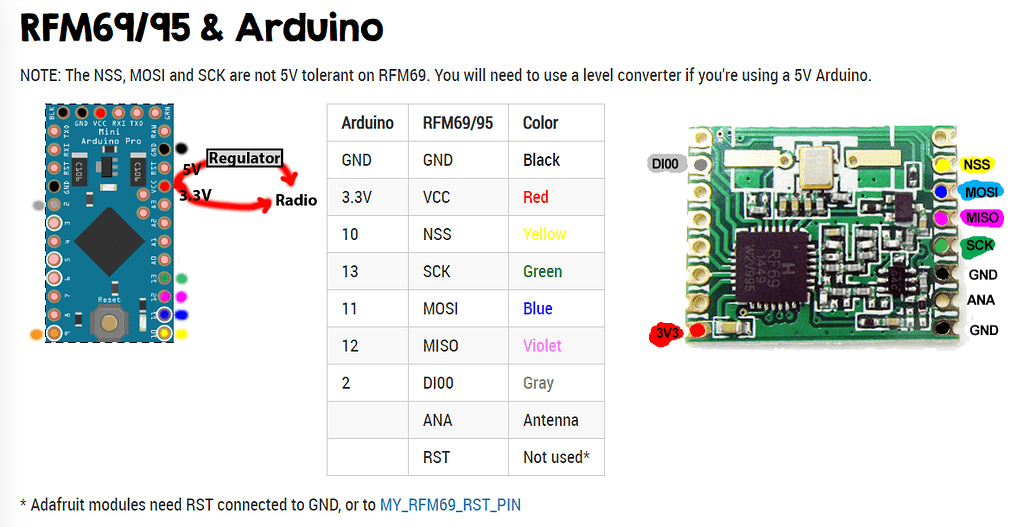

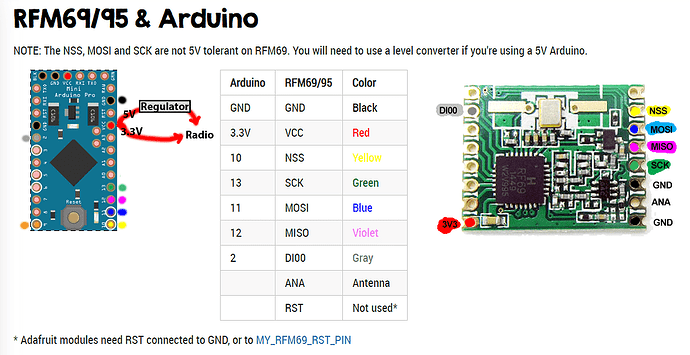

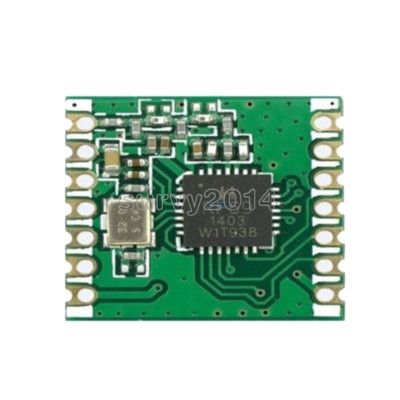

//define the pins used by the LoRa transceiver module
#define SCK 5
#define MISO 19
#define MOSI 27
#define SS 18
#define RST 14
#define DIO0 26
//433E6 for Asia
//866E6 for Europe
//915E6 for North America
#define BAND 868E6
//OLED pins
#define OLED_SDA 4
#define OLED_SCL 15
#define OLED_RST 16
#define SCREEN_WIDTH 128 // OLED display width, in pixels
#define SCREEN_HEIGHT 64 // OLED display height, in pixels
#include <BLEDevice.h>
#include <BLEServer.h>
#include <BLEUtils.h>
#include <BLE2902.h>
BLEServer *pServer = NULL;
BLECharacteristic *pCharacteristic;
bool deviceConnected = false;
bool oldDeviceConnected = false;
uint8_t txValue = 0;
const int wifiAddr = 10;
char CrLf[2] = {0x0D,0x0A};
String ssids_array[50];
String network_string;
char charBuf[50];
int scanWifi;
String MQTTserver;
String MQTTport;
String telnetClient;
String MQTT_USER;
String MQTT_PASSWORD;
String receivedData;
// See the following for generating UUIDs:
// https://www.uuidgenerator.net/
#define SERVICE_UUID "6E400001-B5A3-F393-E0A9-E50E24DCCA9E" // UART service UUID
#define CHARACTERISTIC_UUID_RX "6E400002-B5A3-F393-E0A9-E50E24DCCA9E"
#define CHARACTERISTIC_UUID_TX "6E400003-B5A3-F393-E0A9-E50E24DCCA9E"
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RST);
String LoRaSend;
String LoRaData;
String BLEreceiv;
int flagBLE;
Preferences preferences;
WiFiClient wifiClient;
PubSubClient client(wifiClient);
class MyServerCallbacks: public BLEServerCallbacks {
void onConnect(BLEServer* pServer) {
Serial.println("reco");
deviceConnected = true;
};
void onDisconnect(BLEServer* pServer) {
Serial.println("deco");
deviceConnected = false;
}
};
class MyCallbacks: public BLECharacteristicCallbacks {
void onWrite(BLECharacteristic *pCharacteristic){
std::string value = pCharacteristic->getValue();
if(value.length() > 0){
Serial.print("Rx : ");
Serial.println(value.c_str());
BLEreceiv = value.c_str();
flagBLE = 1;
if(BLEreceiv.startsWith("scan,")){
Serial.println("ok test");
scanWifi = 1;
}
if(BLEreceiv.startsWith("55,")){
Serial.print("start config : ");
writeString(wifiAddr, value.c_str());
hard_restart();
}
}
}
void writeString(int add, String data){
/*int _size = data.length();
for(int i=0; i<_size; i++){
EEPROM.write(add+i, data[i]);
}
EEPROM.write(add+_size, '\0');
EEPROM.commit();*/
preferences.putString("Data", data);
Serial.println("Network Credentials have been Saved");
preferences.end();
}
void hard_restart() {
esp_task_wdt_init(1,true);
esp_task_wdt_add(NULL);
while(true);
}
};
void reconnect() {
// Loop until we're reconnected
while (!client.connected()) {
Serial.print("Attempting MQTT connection...");
// Create a random client ID
String clientId = "ESP32Client-";
clientId += String(random(0xffff), HEX);
char charBuff1[MQTT_USER.length()+1];
char charBuff2[MQTT_PASSWORD.length()+1];
MQTT_USER.toCharArray(charBuff1,MQTT_USER.length()+1);
MQTT_PASSWORD.toCharArray(charBuff2,MQTT_PASSWORD.length()+1);
// Attempt to connect
if (client.connect(clientId.c_str(),charBuff1,charBuff2)) {
Serial.println("connected");
// ... and resubscribe
String stringTwo = WiFi.macAddress();
stringTwo += "/gateway/rx";
char charBuf[stringTwo.length()+1];
stringTwo.toCharArray(charBuf, stringTwo.length()+1);
client.subscribe(charBuf);
} else {
Serial.print("failed, rc=");
Serial.print(client.state());
Serial.println(" try again in 5 seconds");
// Wait 5 seconds before retrying
delay(5000);
}
}
}
void wifiToBLE(){
WiFi.mode(WIFI_STA);
// WiFi.scanNetworks will return the number of networks found
delay(500);
int n = WiFi.scanNetworks();
if (n == 0) {
pCharacteristic->setValue("no networks found .");
pCharacteristic->notify();
pCharacteristic->setValue(CrLf);
pCharacteristic->notify();
} else {
pCharacteristic->setValue("networks found .");
pCharacteristic->notify();
pCharacteristic->setValue(CrLf);
pCharacteristic->notify();
delay(500);
for (int i = 0; i < n; ++i) {
ssids_array[i + 1] = WiFi.SSID(i);
Serial.print(i + 1);
Serial.print(": ");
Serial.println(ssids_array[i + 1]);
network_string = i + 1;
network_string = network_string + ": " + WiFi.SSID(i) + " (RSSI:" + WiFi.RSSI(i) + ")";
network_string.toCharArray(charBuf, network_string.length()+1);
pCharacteristic->setValue(charBuf);
pCharacteristic->notify();
pCharacteristic->setValue(CrLf);
pCharacteristic->notify();
}
}
}
void setup() {
scanWifi = 0;
flagBLE = 0;
//initialize Serial Monitor
Serial.begin(115200);
preferences.begin("Credentials", false);
receivedData = preferences.getString("Data", "");
Serial.print("Read Data:");
Serial.println(receivedData);
/* Serial.println("\nTesting EEPROM Library\n");
if (!EEPROM.begin(EEPROM_SIZE)) {
Serial.println("Failed to initialise EEPROM");
Serial.println("Restarting...");
delay(1000);
ESP.restart();
}
delay (4000);
receivedData = read_String(wifiAddr);
Serial.print("Read Data:");
Serial.println(receivedData);
delay (4000);*/
//reset OLED display via software
pinMode(OLED_RST, OUTPUT);
digitalWrite(OLED_RST, LOW);
delay(20);
digitalWrite(OLED_RST, HIGH);
//initialize OLED
Wire.begin(OLED_SDA, OLED_SCL);
if(!display.begin(SSD1306_SWITCHCAPVCC, 0x3c, false, false)) { // Address 0x3C for 128x32
Serial.println(F("SSD1306 allocation failed"));
for(;;); // Don't proceed, loop forever
}
display.clearDisplay();
display.setTextColor(WHITE);
display.setTextSize(1);
display.setCursor(0,0);
display.print("LORA duplex 115200bd ");
display.display();
Serial.println("LoRa duplex Test");
//SPI LoRa pins
SPI.begin(SCK, MISO, MOSI, SS);
//setup LoRa transceiver module
LoRa.setPins(SS, RST, DIO0);
if (!LoRa.begin(BAND)) {
Serial.println("Starting LoRa failed!");
while (1);
}
LoRa.setTxPower(14);//Supported values are 2 to 20 for PA_OUTPUT_PA_BOOST_PIN, and 0 to 14 for PA_OUTPUT_RFO_PIN. LoRa.setTxPower(txPower, outputPin);
LoRa.setSpreadingFactor(12);//Supported values are between 6 and 12. If a spreading factor of 6 is set, implicit header mode must be used to transmit and receive packets.
LoRa.setSignalBandwidth(500E3);//signalBandwidth - signal bandwidth in Hz, defaults to 125E3.
//Supported values are 7.8E3, 10.4E3, 15.6E3, 20.8E3, 31.25E3, 41.7E3, 62.5E3, 125E3, 250E3, and 500E3.
LoRa.enableCrc();//LoRa.disableCrc();
//LoRa.setGain(6);//Supported values are between 0 and 6. If gain is 0, AGC will be enabled and LNA gain will not be used. Else if gain is from 1 to 6, AGC will be disabled and LNA gain will be used.
bleTask();
Serial.println("LoRa Initializing OK!");
display.setCursor(0,10);
display.println("LoRa Initializing OK!");
display.display();
delay(4000);
wifiTask();
char charBuff3[MQTTserver.length()+1];
MQTTserver.toCharArray(charBuff3,MQTTserver.length()+1);
client.setServer(charBuff3, MQTTport.toInt());
client.setCallback(callback);
reconnect();
delay (1000);
publishSerialData("test");
}
void loop() {
//try to parse packet
int packetSize = LoRa.parsePacket();
if (packetSize) {
//received a packet
received();
}
while (Serial.available()) // Attendre l'entré de l'utilisateur
{
delay(10);
LoRaSend = Serial.readString() ;
transmittion();
}
if (scanWifi == 1){
wifiToBLE();
scanWifi = 0;
}
if (flagBLE == 1){
LoRaSend = BLEreceiv ;
transmittion();
flagBLE = 0;
}
// disconnecting
if (!deviceConnected && oldDeviceConnected) {
delay(500); // give the bluetooth stack the chance to get things ready
pServer->startAdvertising(); // restart advertising
Serial.println("start advertising");
oldDeviceConnected = deviceConnected;
}
// connecting
if (deviceConnected && !oldDeviceConnected) {
// do stuff here on connecting
oldDeviceConnected = deviceConnected;
}
client.loop();
}
void bleTask(){
// Create the BLE Device
BLEDevice::init("ESP32 LoRa GW"); // Give it a name
// Create the BLE Server
BLEServer *pServer = BLEDevice::createServer();
pServer->setCallbacks(new MyServerCallbacks());
// Create the BLE Service
BLEService *pService = pServer->createService(SERVICE_UUID);
// Create a BLE Characteristic
pCharacteristic = pService->createCharacteristic(
CHARACTERISTIC_UUID_TX,
BLECharacteristic::PROPERTY_NOTIFY
);
pCharacteristic->addDescriptor(new BLE2902());
BLECharacteristic *pCharacteristic = pService->createCharacteristic(
CHARACTERISTIC_UUID_RX,
BLECharacteristic::PROPERTY_WRITE
);
pCharacteristic->setCallbacks(new MyCallbacks());
// Start the service
pService->start();
// Start advertising
pServer->getAdvertising()->start();
Serial.println("Attente connection client BLE...");
}
/*String read_String(char add)
{
int i;
char data[100]; //Max 100 Bytes
int len=0;
unsigned char k;
k=EEPROM.read(add);
while(k != '\0' && len<500) //Read until null character
{
k=EEPROM.read(add+len);
data[len]=k;
len++;
}
data[len]='\0';
return String(data);
}*/
String getValue(String data, char separator, int index){
int found = 0;
int strIndex[] = {0, -1};
int maxIndex = data.length()-1;
for(int i=0; i<=maxIndex && found <=index; i++){
if(data.charAt(i)==separator || i==maxIndex){
found++;
strIndex[0] = strIndex[1]+1;
strIndex[1] = (i==maxIndex) ? i+1 : i;
}
}
return found>index ? data.substring(strIndex[0], strIndex[1]) : "";
}
void wifiTask() {
//receivedData = read_String(wifiAddr);
//receivedData = "TP-Link_ELECTROPROD,Batimat2017,193.70.2.114,1883,1,Connected.Domotic.System,SuperCacahouette,";
if(receivedData.length() > 0){
String testTrame = getValue(receivedData, ',', 0);
String wifiName = getValue(receivedData, ',', 1);
String wifiPassword = getValue(receivedData, ',', 2);
MQTTserver = getValue(receivedData, ',', 3);
MQTTport = getValue(receivedData, ',', 4);
telnetClient = getValue(receivedData, ',', 5);
MQTT_USER = getValue(receivedData, ',', 6);
MQTT_PASSWORD = getValue(receivedData, ',', 7);
if(wifiName.length() > 0 && wifiPassword.length() > 0){
Serial.print("WifiName : ");
Serial.println(wifiName);
Serial.print("wifiPassword : ");
Serial.println(wifiPassword);
Serial.print("MQTTserver : ");
Serial.println(MQTTserver);
Serial.print("MQTTport : ");
Serial.println(MQTTport);
Serial.print("telnetClient : ");
Serial.println(telnetClient);
Serial.print("MQTT_USER : ");
Serial.println(MQTT_USER);
Serial.print("MQTT_PASSWORD : ");
Serial.println(MQTT_PASSWORD);
WiFi.begin(wifiName.c_str(), wifiPassword.c_str());
Serial.print("Connecting to Wifi");
while(WiFi.status() != WL_CONNECTED){
Serial.print(".");
delay(1000);
}
Serial.println();
Serial.print("Connected with IP: ");
Serial.println(WiFi.localIP());
Serial.print("Ping Host: ");
Serial.println(MQTTserver);
//Serial.println(remote_host);
MQTTserver.toCharArray(charBuf, MQTTserver.length()+1);
if(Ping.ping(charBuf)){
Serial.println("Success!!");
}else{
Serial.println("ERROR!!");
}
}
}
}
void transmittion(){
Serial.println(LoRaSend);
LoRa.beginPacket();
LoRa.print(LoRaSend);
LoRa.endPacket();
display.clearDisplay();
display.setCursor(0,0);
display.print("LORA DUPLEX");
display.setCursor(0,10);
display.print("Transmit packet:");
display.setCursor(0,20);
display.print(LoRaSend);
display.display();
}
void received(){
Serial.print("Received packet ");
//read packet
while (LoRa.available()) {
LoRaData = LoRa.readString();
Serial.print(LoRaData);
}
//print RSSI of packet
int rssi = LoRa.packetRssi();
Serial.print(" with RSSI ");
Serial.println(rssi);
// Dsiplay information
display.clearDisplay();
display.setCursor(0,0);
display.print("LORA DUPLEX");
display.setCursor(0,10);
display.print("Receiv packet:");
display.setCursor(87,10);
display.print(rssi);
display.print("dB");
display.setCursor(0,20);
display.print(LoRaData);
display.display();
char charBuf[LoRaData.length()+1];
LoRaData.toCharArray(charBuf, LoRaData.length()+1);
publishSerialData(charBuf);
if (deviceConnected) {
pCharacteristic->setValue(charBuf);
pCharacteristic->notify();
}
}
void callback(char* topic, byte *payload, unsigned int length) {
Serial.println("-------new message from broker-----");
Serial.print("channel:");
Serial.println(topic);
//Serial.println("");
Serial.print("data:");
//Serial.write(payload, length);
LoRaSend = "";
for (int i = 0; i < length; i++) {
LoRaSend += ((char)payload[i]);
}
transmittion();
/* char temp[2];
char c;
int index;
int e;
uint8_t tx_buffer[128];
uint8_t len_buffer=0;
for (e = 0; e < length; e += 2) {
temp[0] = payload[e];
temp[1] = payload[e + 1];
tx_buffer[len_buffer] = strtol(temp,NULL,16);
if (tx_buffer[len_buffer] <= 0x0F){
tft.print("0");
}
tft.print(strtol(temp,NULL,16),HEX);
len_buffer++;}
//Serial2.println(len_buffer);
for (e=0; e<len_buffer; e++){
Serial2.write(tx_buffer[e]);
//Serial.print(" ");
}
//Serial2.write(payload, length);
tft.println(" ");
//delay(1);*/
}

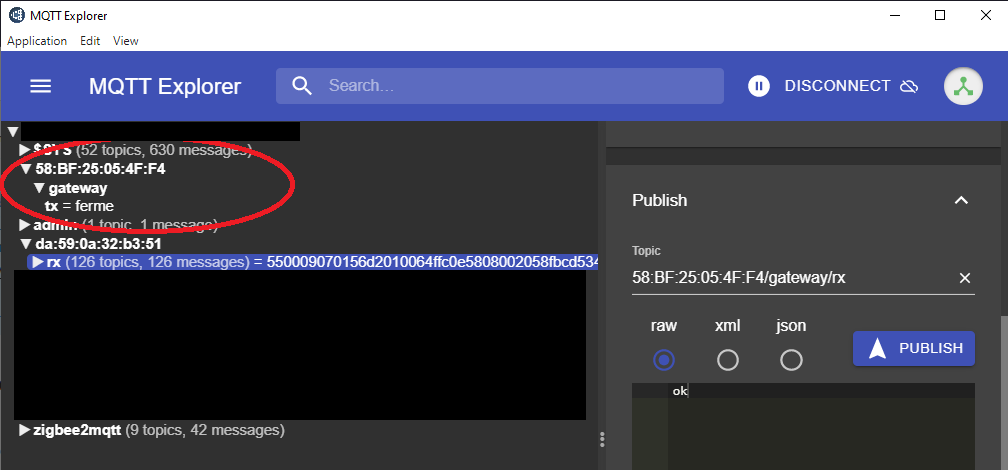

void publishSerialData(char *serialData){
if (!client.connected()) {
reconnect();
}
String stringOne = WiFi.macAddress();
stringOne += "/gateway/tx";
char charBuf[stringOne.length()+1];
stringOne.toCharArray(charBuf, stringOne.length()+1);
client.publish(charBuf, serialData);
}
Les crédential wifi et mqtt se règle par le ble via votre smartphone
j’utilise
et on envoie
55,ssid,passWifi,servermqtt,portmqtt,logmqtt,passmqtt
car avec les nouveau smartphone règler un esp via wifimanager par exemple devient compliqué car le smartphone détecte l’absence d’internet et donc se déconnect du réseau
On a pas ce problème avec le bluetooth
bon belle avancée déjà on va avoir le serveur et passerelle en 868MHz
Un bon début?
