Hi Jeedom Zigbee plugin team
I would like to request adding the following sensor to the zigbee library.

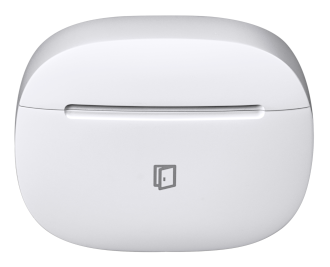

Model: Samsung SmartThings Multisensor
Link to model:
Raw informations.
{
"ieee": "28:6d:97:00:01:11:75:1c",
"nwk": 38435,
"status": 2,
"lqi": "128",
"rssi": "-68",
"last_seen": "1641628790.8736494",
"node_descriptor": "02:40:80:41:12:52:52:00:00:2c:52:00:00",
"endpoints": [
{
"id": 1,
"status": 1,
"device_type": 1026,
"profile_id": 260,
"manufacturer": "Samjin",
"model": "multi",
"output_clusters": [
{
"id": 3,
"name": "Identify",
"attributes": []
},
{
"id": 25,
"name": "Ota",
"attributes": []
}
],
"input_clusters": [
{
"id": 0,
"name": "Basic",
"attributes": [
{
"id": 0,
"name": "zcl_version",
"value": 2
},
{
"id": 1,
"name": "app_version",
"value": 20
},
{
"id": 3,
"name": "hw_version",
"value": 0
},
{
"id": 4,
"name": "manufacturer",
"value": "Samjin"
},
{
"id": 5,
"name": "model",
"value": "multi"
},
{
"id": 7,
"name": "power_source",
"value": 3
},
{
"id": 16384,
"name": "sw_build_id",
"value": ""
}
]
},
{
"id": 1,
"name": "Power Configuration",
"attributes": [
{
"id": 33,
"name": "battery_percentage_remaining",
"value": 98
}
]
},
{
"id": 3,
"name": "Identify",
"attributes": []
},
{
"id": 32,
"name": "Poll Control",
"attributes": [
{
"id": 0,
"name": "checkin_interval",
"value": 14400
}
]
},
{
"id": 1026,
"name": "Temperature Measurement",
"attributes": [
{
"id": 0,
"name": "measured_value",
"value": 2014
}
]
},
{
"id": 1280,
"name": "IAS Zone",
"attributes": [
{
"id": 16,
"name": "cie_addr",
"value": [
230,
103,
169,
254,
255,
35,
164,
96
]
}
]
},
{
"id": 2821,
"name": "Diagnostic",
"attributes": []
},
{
"id": 64514,
"name": "Smartthings Accelerometer",
"attributes": []
}
]
}
],
"signature": {
"manufacturer": "Samjin",
"model": "multi",
"node_desc": {
"logical_type": 2,
"complex_descriptor_available": 0,
"user_descriptor_available": 0,
"reserved": 0,
"aps_flags": 0,
"frequency_band": 8,
"mac_capability_flags": 128,
"manufacturer_code": 4673,
"maximum_buffer_size": 82,
"maximum_incoming_transfer_size": 82,
"server_mask": 11264,
"maximum_outgoing_transfer_size": 82,
"descriptor_capability_field": 0
},
"endpoints": {
"1": {
"profile_id": 260,
"device_type": 1026,
"input_clusters": [
0,
1,
3,
32,
1026,
1280,
2821,
64514
],
"output_clusters": [
3,
25
]
}
}
},
"class": "zhaquirks.samjin.multi2"
}
Debug log from Zigbee plugin from the device:
[2022-01-08 09:17:42][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1026":[{"value":"1972","cluster_name":"Temperature Measurement"}]}}}}
[2022-01-08 09:17:42][DEBUG] : Search attribut for 28:6d:97:00:01:11:75:1c logicalId : 1::1026::0 => 1972 convert to 1972
[2022-01-08 09:18:19][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports|Alarm_1","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:18:19][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports|Alarm_1 convert to 1
[2022-01-08 09:18:20][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:18:20][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:18:20][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:18:29][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:18:29][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports convert to 0
[2022-01-08 09:18:29][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:18:29][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:18:29][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:19:10][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports|Alarm_1","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:19:10][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports|Alarm_1 convert to 1
[2022-01-08 09:19:10][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:19:10][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:19:10][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:19:33][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:19:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports convert to 0
[2022-01-08 09:19:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:19:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:19:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:20:06][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports|Alarm_1","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:20:06][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports|Alarm_1 convert to 1
[2022-01-08 09:20:06][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:20:06][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:20:06][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:20:09][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:20:09][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports convert to 0
[2022-01-08 09:20:09][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:20:09][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:20:09][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:21:45][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports|Alarm_1","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:21:45][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports|Alarm_1 convert to 1
[2022-01-08 09:21:45][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:21:45][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:21:45][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:21:57][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:21:57][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports convert to 0
[2022-01-08 09:21:57][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:21:57][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:21:57][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:22:33][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports|Alarm_1","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:22:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports|Alarm_1 convert to 1
[2022-01-08 09:22:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:22:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:22:33][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:22:36][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:22:36][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports convert to 0
[2022-01-08 09:22:36][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:22:36][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:22:36][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:22:56][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports|Alarm_1","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:22:56][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports|Alarm_1 convert to 1
[2022-01-08 09:22:56][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:22:56][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:22:56][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
[2022-01-08 09:23:48][DEBUG] : {"devices":{"28:6d:97:00:01:11:75:1c":{"1":{"1280":{"cmd":{"1":{"value":"ZoneStatus.Restore_reports","cluster_name":"IAS Zone"},"1.1":{"value":"bitmap8.0","cluster_name":"IAS Zone"},"1.2":{"value":"0","cluster_name":"IAS Zone"},"1.3":{"value":"0","cluster_name":"IAS Zone"}}}}}}}
[2022-01-08 09:23:48][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1 => ZoneStatus.Restore_reports convert to 0
[2022-01-08 09:23:48][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.1 => bitmap8.0 convert to 0
[2022-01-08 09:23:48][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.2 => 0 convert to 0
[2022-01-08 09:23:48][DEBUG] : Search command for 28:6d:97:00:01:11:75:1c logicalId : 1::1280::cmd::1.3 => 0 convert to 0
I hope this information is sufficient
Thank you for your work with the plugin.
Best regards,
Jeppe
