Piloter des modules Flash depuis un rfxcom

Plugins Protocole domotique
1

Bonjour,
Je souhaite piloter des modules existant pour chauffage electrique (il y en a un par chauffage) via mon rfxcom (je précise que ce sont des modules 433,92mhz !).
Malgré le passage en version béta du plugin rfxcom, impossible de trouver ces modules en mode inclusion. Voici ce que les logs en mode debug affichent :

Message: 0a031614300000a0000000
Decode : 0a031614300000a0000000
Test message: 0a031614300000a0000000
PacketType: 0x03
Length: 11
No decoder found

J’ai regardé via le rfxmgr et voici ce qu’il affiche :

03/10/2021 06:45:11:169= 0A031601300000A0800000
Packettype = UNDECODED RF Message
UNDECODED Home Confort:300000A0800000

J’ai pensé à activer le protocole homeConfort mais sans succès…
Auriez-vous une solution pour que je puisse piloter ces modules via mon rfxcom ?
Je suis à votre disposition pour tout complément d’information !
Bonne journée
Nico

2

Re slt…
Active le maxi de protocole possible sur le RFXmngr ( en 433.92) et refait log

3

Voici :

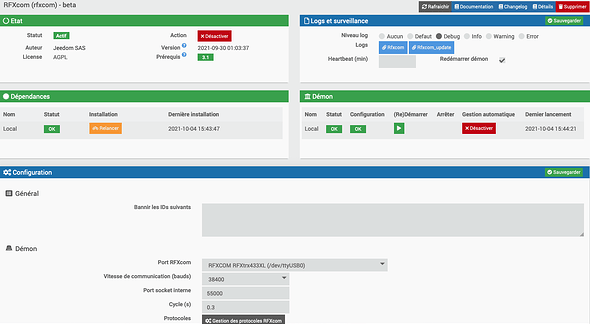

Capture d’écran 2021-10-04 à 16.08.17
Capture d’écran 2021-10-04 à 16.08.171174×755 127 KB
Capture d’écran 2021-10-04 à 16.08.47
Capture d’écran 2021-10-04 à 16.08.471478×813 73.5 KB

et voici le log :

> [2021-10-04 16:09:34][DEBUG] : Client connected to [127.0.0.1:41020]
> [2021-10-04 16:09:34][DEBUG] : Message read from socket: b'{"apikey »:"XXX","cmd":"include_mode","state":"0"}'
> [2021-10-04 16:09:34][DEBUG] : Client disconnected from [127.0.0.1:41020]
> [2021-10-04 16:09:34][DEBUG] : Message received in socket JEEDOM_SOCKET_MESSAGE
> [2021-10-04 16:09:34][DEBUG] : Leave in include mode
> [2021-10-04 16:09:34][DEBUG] : Send to jeedom :  {'include_mode': '0'}
> [2021-10-04 16:09:34][DEBUG] : Starting new HTTP connection (1): 127.0.0.1:80
> [2021-10-04 16:09:34][DEBUG] : {"include_mode":"0"}
> [2021-10-04 16:09:34][DEBUG] : http://127.0.0.1:80 "POST /plugins/rfxcom/core/php/jeeRfxcom.php?apikey=XXX HTTP/1.1" 200 0
> [2021-10-04 16:09:36][DEBUG] : Client connected to [127.0.0.1:41024]
> [2021-10-04 16:09:36][DEBUG] : Message read from socket: b'{"apikey »:"XXX","cmd":"include_mode","state":"1"}'
> [2021-10-04 16:09:36][DEBUG] : Client disconnected from [127.0.0.1:41024]
> [2021-10-04 16:09:36][DEBUG] : Message received in socket JEEDOM_SOCKET_MESSAGE
> [2021-10-04 16:09:36][DEBUG] : Enter in include mode
> [2021-10-04 16:09:36][DEBUG] : Send to jeedom :  {'include_mode': '1'}
> [2021-10-04 16:09:36][DEBUG] : Starting new HTTP connection (1): 127.0.0.1:80
> [2021-10-04 16:09:36][DEBUG] : {"include_mode":"1"}
> [2021-10-04 16:09:36][DEBUG] : http://127.0.0.1:80 "POST /plugins/rfxcom/core/php/jeeRfxcom.php?apikey=XXX HTTP/1.1" 200 0
> [2021-10-04 16:09:46][DEBUG] : Message: 0a031639300000a0000000
> [2021-10-04 16:09:46][DEBUG] : Decode : 0a031639300000a0000000
> [2021-10-04 16:09:46][DEBUG] : Test message: 0a031639300000a0000000
> [2021-10-04 16:09:46][DEBUG] : PacketType: 0x03
> [2021-10-04 16:09:46][DEBUG] : Length: 11
> [2021-10-04 16:09:46][DEBUG] : No decoder found
> [2021-10-04 16:09:49][DEBUG] : Message: 0a03163a300000a0000000
> [2021-10-04 16:09:49][DEBUG] : Decode : 0a03163a300000a0000000
> [2021-10-04 16:09:49][DEBUG] : Test message: 0a03163a300000a0000000
> [2021-10-04 16:09:49][DEBUG] : PacketType: 0x03
> [2021-10-04 16:09:49][DEBUG] : Length: 11
> [2021-10-04 16:09:49][DEBUG] : No decoder found
> [2021-10-04 16:09:52][DEBUG] : Message: 0a03163b300000a0000000
> [2021-10-04 16:09:52][DEBUG] : Decode : 0a03163b300000a0000000
> [2021-10-04 16:09:52][DEBUG] : Test message: 0a03163b300000a0000000
> [2021-10-04 16:09:52][DEBUG] : PacketType: 0x03
> [2021-10-04 16:09:52][DEBUG] : Length: 11
> [2021-10-04 16:09:52][DEBUG] : No decoder found
> [2021-10-04 16:09:57][DEBUG] : Message: 0a03163c300000a0000000
> [2021-10-04 16:09:57][DEBUG] : Decode : 0a03163c300000a0000000
> [2021-10-04 16:09:57][DEBUG] : Test message: 0a03163c300000a0000000
> [2021-10-04 16:09:57][DEBUG] : PacketType: 0x03
> [2021-10-04 16:09:57][DEBUG] : Length: 11
> [2021-10-04 16:09:57][DEBUG] : No decoder found
> [2021-10-04 16:10:00][DEBUG] : Message: 0a03163d300000a0000000
> [2021-10-04 16:10:00][DEBUG] : Decode : 0a03163d300000a0000000
> [2021-10-04 16:10:00][DEBUG] : Test message: 0a03163d300000a0000000
> [2021-10-04 16:10:00][DEBUG] : PacketType: 0x03
> [2021-10-04 16:10:00][DEBUG] : Length: 11
> [2021-10-04 16:10:00][DEBUG] : No decoder found
> [2021-10-04 16:10:03][DEBUG] : Message: 0a03163e300000a0000000
> [2021-10-04 16:10:03][DEBUG] : Decode : 0a03163e300000a0000000
> [2021-10-04 16:10:03][DEBUG] : Test message: 0a03163e300000a0000000
> [2021-10-04 16:10:03][DEBUG] : PacketType: 0x03
> [2021-10-04 16:10:03][DEBUG] : Length: 11
> [2021-10-04 16:10:03][DEBUG] : No decoder found
> [2021-10-04 16:10:07][DEBUG] : Message: 0a03163f300000a0000000
> [2021-10-04 16:10:07][DEBUG] : Decode : 0a03163f300000a0000000
> [2021-10-04 16:10:07][DEBUG] : Test message: 0a03163f300000a0000000
> [2021-10-04 16:10:07][DEBUG] : PacketType: 0x03
> [2021-10-04 16:10:07][DEBUG] : Length: 11
> [2021-10-04 16:10:07][DEBUG] : No decoder found
> [2021-10-04 16:10:10][DEBUG] : Message: 0a031640300000a0000000
> [2021-10-04 16:10:10][DEBUG] : Decode : 0a031640300000a0000000
> [2021-10-04 16:10:10][DEBUG] : Test message: 0a031640300000a0000000
> [2021-10-04 16:10:10][DEBUG] : PacketType: 0x03
> [2021-10-04 16:10:10][DEBUG] : Length: 11
> [2021-10-04 16:10:10][DEBUG] : No decoder found

Merci

4

Je vais faire de même sur le rfxmgr (j’avais pas vu sur votre post)

5

Ok, ne mets pas les 8 et 9 Blinds ni ATI le 17, (ni bien sur les 24 et 25) que tu ne verras pas sur RFXmngr

6

Et voilà :

> RFXtrx433XL  COM4  Serialnr: DO5P2CXE
> ================================================
> 04/10/2021 04:16:34:931= Reset receiver/transceiver: 0D 00 00 00 00 00 1C 00 00 00 00 00 00 00
> ================================================
> 04/10/2021 04:16:35:415= Get Status: 0D 00 00 01 02 00 1C 00 00 00 00 00 00 00
> ------------------------------------------------
> 04/10/2021 04:16:35:524= 1401000102532C7F1F7F0303011C10750000000000
> Packettype        = Interface Message
> subtype           = Interface Response
> Sequence nbr      = 1
> response on cmnd  = Get Status
> Transceiver type  = 433.92MHz
> Firmware version  = 1044
> Firmware Type     = ProXL1
> Noise level       = 117
> Transmit power    = 10dBm
> Hardware version  = 3.1  RFXtrx433XL
> Undec             off
> Imagintronix      enabled
> Byron SX          enabled
> RSL               enabled
> Lighting4         enabled
> FineOffset        enabled
> Rubicson          enabled
> AE Blyss          enabled
> BlindsTx          disabled
> BlindsT0          disabled
> Legrand           enabled
> La Crosse         enabled
> Hideki            enabled
> AD LightwaveRF    enabled
> Mertik            enabled
> Visonic           disabled
> ATI,Cartelectroni enabled
> Oregon Scientific enabled
> Meiantech         enabled
> HomeEasy EU       enabled
> AC                enabled
> ARC               enabled
> X10               enabled
> HomeConfort,Fan   enabled
> KeeLoq            enabled
>
> ------------------------------------------------
> 04/10/2021 04:16:35:852= 1401070207436F7079726967687420524658434F4D
> ================================================
> 04/10/2021 04:16:56:085= Set Mode: 0D 00 00 03 03 53 1C FF FF FF 3F 00 00 00
> ------------------------------------------------
> 04/10/2021 04:16:56:381= 1401000303532CFFFFFF3F03011C107C4658434F4D
> Packettype        = Interface Message
> subtype           = Interface Response
> Sequence nbr      = 3
> response on cmnd  = Set Mode
> Transceiver type  = 433.92MHz
> Firmware version  = 1044
> Firmware Type     = ProXL1
> Noise level       = 124
> Transmit power    = 10dBm
> Hardware version  = 3.1  RFXtrx433XL
> Undec             on
> Imagintronix      enabled
> Byron SX          enabled
> RSL               enabled
> Lighting4         enabled
> FineOffset        enabled
> Rubicson          enabled
> AE Blyss          enabled
> BlindsTx          enabled
> BlindsT0          enabled
> Legrand           enabled
> La Crosse         enabled
> Hideki            enabled
> AD LightwaveRF    enabled
> Mertik            enabled
> Visonic           enabled
> ATI,Cartelectroni enabled
> Oregon Scientific enabled
> Meiantech         enabled
> HomeEasy EU       enabled
> AC                enabled
> ARC               enabled
> X10               enabled
> HomeConfort,Fan   enabled
> KeeLoq            enabled
> ------------------------------------------------
> 04/10/2021 04:16:58:456= 0A031600300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:01:405= 0A031601300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:16:037= 0A031602300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:18:877= 0A031603300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:21:934= 0A031604300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:26:381= 0A031605300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:29:365= 0A031606300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:32:422= 0A031607300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:36:899= 0A031608300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:39:966= 0A031609300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:17:42:915= 0A03160A300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ================================================
> 04/10/2021 04:18:03:538= Set Mode: 0D 00 00 04 03 53 1C FF FF FF 3F 00 00 00
> ------------------------------------------------
> 04/10/2021 04:18:03:881= 1401000403532CFFFFFF3F03011C107C4658434F4D
> Packettype        = Interface Message
> subtype           = Interface Response
> Sequence nbr      = 4
> response on cmnd  = Set Mode
> Transceiver type  = 433.92MHz
> Firmware version  = 1044
> Firmware Type     = ProXL1
> Noise level       = 124
> Transmit power    = 10dBm
> Hardware version  = 3.1  RFXtrx433XL
> Undec             on
> Imagintronix      enabled
> Byron SX          enabled
> RSL               enabled
> Lighting4         enabled
> FineOffset        enabled
> Rubicson          enabled
> AE Blyss          enabled
> BlindsTx          enabled
> BlindsT0          enabled
> Legrand           enabled
> La Crosse         enabled
> Hideki            enabled
> AD LightwaveRF    enabled
> Mertik            enabled
> Visonic           enabled
> ATI,Cartelectroni enabled
> Oregon Scientific enabled
> Meiantech         enabled
> HomeEasy EU       enabled
> AC                enabled
> ARC               enabled
> X10               enabled
> HomeConfort,Fan   enabled
> KeeLoq            enabled
> ------------------------------------------------
> 04/10/2021 04:18:07:375= 0A03160B300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:18:10:433= 0A03160C300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
> ------------------------------------------------
> 04/10/2021 04:18:13:381= 0A03160D300000A0000000
> Packettype        = UNDECODED RF Message
> UNDECODED Home Confort:300000A0000000
7

Insert dans Balises </>

8

ok voici

RFXtrx433XL  COM4  Serialnr: DO5P2CXE
================================================
04/10/2021 04:16:34:931= Reset receiver/transceiver: 0D 00 00 00 00 00 1C 00 00 00 00 00 00 00
================================================
04/10/2021 04:16:35:415= Get Status: 0D 00 00 01 02 00 1C 00 00 00 00 00 00 00
------------------------------------------------
04/10/2021 04:16:35:524= 1401000102532C7F1F7F0303011C10750000000000
Packettype        = Interface Message
subtype           = Interface Response
Sequence nbr      = 1
response on cmnd  = Get Status
Transceiver type  = 433.92MHz
Firmware version  = 1044
Firmware Type     = ProXL1
Noise level       = 117
Transmit power    = 10dBm
Hardware version  = 3.1  RFXtrx433XL
Undec             off
Imagintronix      enabled
Byron SX          enabled
RSL               enabled
Lighting4         enabled
FineOffset        enabled
Rubicson          enabled
AE Blyss          enabled
BlindsTx          disabled
BlindsT0          disabled
Legrand           enabled
La Crosse         enabled
Hideki            enabled
AD LightwaveRF    enabled
Mertik            enabled
Visonic           disabled
ATI,Cartelectroni enabled
Oregon Scientific enabled
Meiantech         enabled
HomeEasy EU       enabled
AC                enabled
ARC               enabled
X10               enabled
HomeConfort,Fan   enabled
KeeLoq            enabled

------------------------------------------------
04/10/2021 04:16:35:852= 1401070207436F7079726967687420524658434F4D
================================================
04/10/2021 04:16:56:085= Set Mode: 0D 00 00 03 03 53 1C FF FF FF 3F 00 00 00
------------------------------------------------
04/10/2021 04:16:56:381= 1401000303532CFFFFFF3F03011C107C4658434F4D
Packettype        = Interface Message
subtype           = Interface Response
Sequence nbr      = 3
response on cmnd  = Set Mode
Transceiver type  = 433.92MHz
Firmware version  = 1044
Firmware Type     = ProXL1
Noise level       = 124
Transmit power    = 10dBm
Hardware version  = 3.1  RFXtrx433XL
Undec             on
Imagintronix      enabled
Byron SX          enabled
RSL               enabled
Lighting4         enabled
FineOffset        enabled
Rubicson          enabled
AE Blyss          enabled
BlindsTx          enabled
BlindsT0          enabled
Legrand           enabled
La Crosse         enabled
Hideki            enabled
AD LightwaveRF    enabled
Mertik            enabled
Visonic           enabled
ATI,Cartelectroni enabled
Oregon Scientific enabled
Meiantech         enabled
HomeEasy EU       enabled
AC                enabled
ARC               enabled
X10               enabled
HomeConfort,Fan   enabled
KeeLoq            enabled
------------------------------------------------
04/10/2021 04:16:58:456= 0A031600300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:01:405= 0A031601300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:16:037= 0A031602300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:18:877= 0A031603300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:21:934= 0A031604300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:26:381= 0A031605300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:29:365= 0A031606300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:32:422= 0A031607300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:36:899= 0A031608300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:39:966= 0A031609300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:17:42:915= 0A03160A300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
================================================
04/10/2021 04:18:03:538= Set Mode: 0D 00 00 04 03 53 1C FF FF FF 3F 00 00 00
------------------------------------------------
04/10/2021 04:18:03:881= 1401000403532CFFFFFF3F03011C107C4658434F4D
Packettype        = Interface Message
subtype           = Interface Response
Sequence nbr      = 4
response on cmnd  = Set Mode
Transceiver type  = 433.92MHz
Firmware version  = 1044
Firmware Type     = ProXL1
Noise level       = 124
Transmit power    = 10dBm
Hardware version  = 3.1  RFXtrx433XL
Undec             on
Imagintronix      enabled
Byron SX          enabled
RSL               enabled
Lighting4         enabled
FineOffset        enabled
Rubicson          enabled
AE Blyss          enabled
BlindsTx          enabled
BlindsT0          enabled
Legrand           enabled
La Crosse         enabled
Hideki            enabled
AD LightwaveRF    enabled
Mertik            enabled
Visonic           enabled
ATI,Cartelectroni enabled
Oregon Scientific enabled
Meiantech         enabled
HomeEasy EU       enabled
AC                enabled
ARC               enabled
X10               enabled
HomeConfort,Fan   enabled
KeeLoq            enabled
------------------------------------------------
04/10/2021 04:18:07:375= 0A03160B300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:18:10:433= 0A03160C300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
------------------------------------------------
04/10/2021 04:18:13:381= 0A03160D300000A0000000
Packettype        = UNDECODED RF Message
UNDECODED Home Confort:300000A0000000
9

Pour Eux non décodable, Home Confort ?

10

« 0316 »
Pour Eux non décodable, Home Confort ?

je ne comprends pas ?

11

C’est apparemment du type 03 subtype 16 !
Le home Confort du 0x17 ?
Ils disent qu’ils n’ont pas le décodage de la trame … 0A03160D300000A0000000
0A longueur
03 Type
16 subtype
0D seq nbr
300000A0 partie de l’ID ? peut être moins long !
000000 il n’y a pas de cde ,ni RSSI ni Bat !

la il y a eu un 300000A0 → 80 peut être une cde ?

12

Je ne sais pas du tout, là ca dépasse mes compétences/connaissances !
Du coup, que faut-il que je fasse pour piloter mes boitiers ? est-ce possible ?
merci

13

Est-ce que tu as des références de ces modules et photos ?

14

Oui, les boitiers sont des flash 30320 : flash-sans-fils.pdf (1,3 Mo)

15

voici le bon document : FLASH 30320.PDF (136,0 Ko)

16

C’est exactement le système que j’ai dans la maison que je viens d’acheter et que je souhaiterais domotiser avec jeedom sur mon rpi

17

Tu as quoi pour faire les commandes, là je vois récepteur !

18

Pour les commander, j’ai un thermostat DIGI 2 HF

19

dans le deuxième document (FLASH 30320.pdf) ils sont en photos les emetteurs que j’ai

20

Ok c’est justement l’emetteur qu’il faut tester , pour voir les dif cde !
