Widget Batterie Core 4.4

Bonjour
J’ai fais la mise a jour de jeedom en version 4.4.17

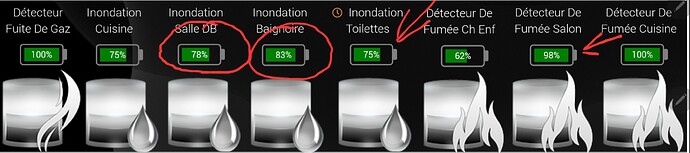

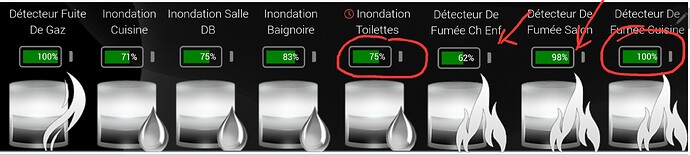

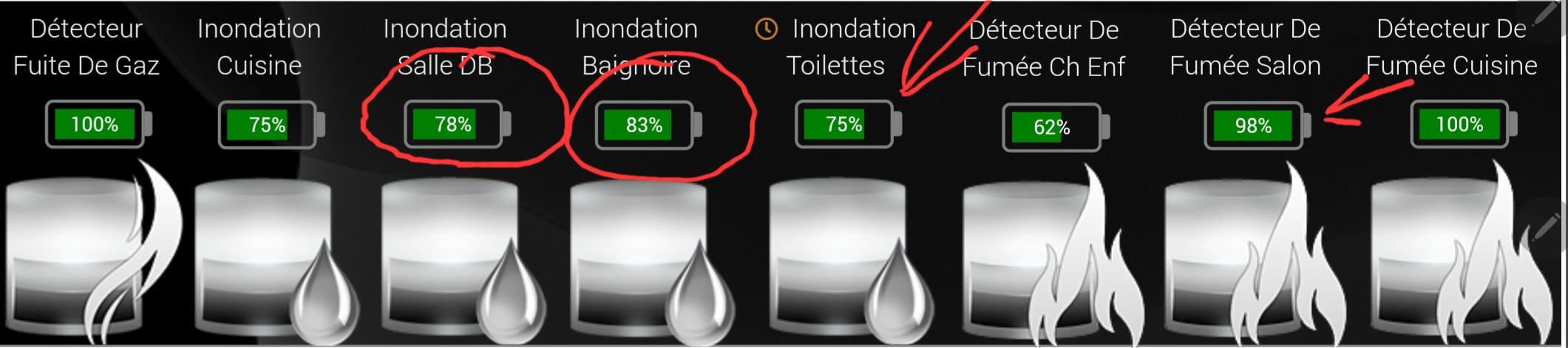

le bout de on widget batterie est décollé je vous mets le code
si toute fois quelqu’un peut m’aider je suis preneuse merci d’avance.
Jeedom 4.4


Jeedom 4.3

<!--
  Widget name : battery_status_percentage_mmi
  Author : geqr
  Website : www.ma-maison-intelligente.fr
  Tutorial : http://ma-maison-intelligente.fr/2020/04/widget-batterie-pour-votre-design-jeedom/
  Inspiration : https://codepen.io/dropside/pen/qjDmb
  Last Update : 20200414 - creation
 -->

<div class="cmd cmd-widget #history#" data-type="info" data-subtype="numeric" data-template="badge" data-cmd_id="#id#" data-cmd_uid="#uid#" data-version="#version#" data-eqLogic_id="#eqLogic_id#">
  <div class="widget-container">
    <div class="battery">
         <div class="juice"></div>
    </div>
    <div class="battery-level">100%</div>
  </div>
</div>

<style>
  :root {
      --juice_alert_color: red;
      --juice_inter_color: orange;
      --juice_ok_color:green;
      --battery_color:grey;
      --battery_level_color:grey;
      --widget_width:60px;
	  --widget_height:30px;
      --font-size:12px;
    }

  .widget-container{
  	width: calc(var(--widget_width) + 20px);
    display:block;
    padding:0px;
    position:relative;
  }

  .battery{
    width: var(--widget_width);
    height: var(--widget_height);
    border: 2px solid var(--battery_color);
    border-radius: 5px;
    padding: 4px;
    box-sizing: border-box;
  }
  .battery:after{
    content: ' ';
    background: var(--battery_color);
    width: 5px;
    height: calc(var(--widget_height) /2);
    position: absolute;
    right: 5px;
    border-radius: 0px 2px 2px 0px;
    top: 24%;
  }
  .battery-level{
	position: absolute;
    top: 0;
    left: 0;
    width: 100%;
    font-size: var(--font-size);
    height: 100%;
    vertical-align: middle;
    line-height: var(--widget_height);
    text-align: center;
    color: var(--battery_color);
  }
  .juice{
    height:100%;
    float: left;
  }

  .juice-alert {
    background:var(--juice_alert_color);
    animation: blinky 1s ease-in-out infinite;
    animation-delay: 2s;
  }

  .juice-inter {
    background:var(--juice_inter_color);
  }

  .juice-ok {
    background:var(--juice_ok_color);
  }

  @keyframes blinky {
    0% {background:transparent;}
    49% {background:transparent;}
    50% {background:var(--juice_alert_color);}
  }
</style>
<script>


  function getOpositeColor(rgb,darkcolor,lightcolor) { // Like this : rgb(0, 0, 0);
    while (rgb.indexOf(' ') != -1) rgb = rgb.replace(' ', '');
    //Check if is formatted as RGB
    if ((x = /([0-9]{0,3}),([0-9]{0,3}),([0-9]{0,3})/.exec(rgb))) {
        //Extract colors
        color = {
            'r': parseInt(x[1]),
            'g': parseInt(x[2]),
            'b': parseInt(x[3])
        };
        //If is this operation be <= 128 return white, others else return black
        OpositeColor = ((0.3 * (color['r'])) + (0.59 * (color['g'])) + (0.11 * (color['b'])) <= 128) ? lightcolor : darkcolor;
        return OpositeColor;
    }
    return -1;
 }

  jeedom.cmd.update['#id#'] = function(_options) {
    var cmd = $('.cmd[data-cmd_id=#id#]');
    var percentage_value = _options.display_value;

    cmd.find('.juice').attr('style', 'width:' + (percentage_value == 0 ? '5' : percentage_value) + '%;');
    cmd.find('.battery-level').html(percentage_value+"%");
    if (percentage_value >=0 && percentage_value<=10){
    	cmd.find('.juice').removeClass('juice-ok juice-inter');
      	cmd.find('.juice').addClass('juice-alert');
        cmd.find('.battery-level').css('color',cmd.find('.battery').css("border-color"));
    } else if (percentage_value >=11 && percentage_value<=45){
      	cmd.find('.juice').removeClass('juice-ok juice-alert');
      	cmd.find('.juice').addClass('juice-inter');
        cmd.find('.battery-level').css('color',getOpositeColor(cmd.find('.juice').css("background-color"),cmd.find('.battery').css("border-color"),"#FFF"));
    } else {
    	cmd.find('.juice').removeClass('juice-inter juice-alert');
      	cmd.find('.juice').addClass('juice-ok');
        cmd.find('.battery-level').css('color',getOpositeColor(cmd.find('.juice').css("background-color"),cmd.find('.battery').css("border-color"),"#FFF"));
    }

  }

  jeedom.cmd.update['#id#']({display_value:'#state#',valueDate:'#valueDate#',collectDate:'#collectDate#',alertLevel:'#alertLevel#'});
</script>

Salut,
A tester:

<!--
  Widget name : battery_status_percentage_mmi
  Author : geqr
  Website : www.ma-maison-intelligente.fr
  Tutorial : http://ma-maison-intelligente.fr/2020/04/widget-batterie-pour-votre-design-jeedom/
  Inspiration : https://codepen.io/dropside/pen/qjDmb
  Last Update : 20200414 - creation
 -->

<div class="cmd cmd-widget #history#" data-type="info" data-subtype="numeric" data-template="badge" data-cmd_id="#id#" data-cmd_uid="#uid#" data-version="#version#" data-eqLogic_id="#eqLogic_id#">
  <div class="widget-container">
    <div class="battery">
         <div class="juice"></div>
    </div>
    <div class="battery-level">100%</div>
  </div>
  <style>
  :root {
      --juice_alert_color: red;
      --juice_inter_color: orange;
      --juice_ok_color:green;
      --battery_color:grey;
      --battery_level_color:grey;
      --widget_width:60px;
	  --widget_height:30px;
      --font-size:12px;
    }

  .widget-container{
  	width: calc(var(--widget_width) + 10px);
    display:block;
    padding:0px;
    position:relative;
  }

  .battery{
    width: var(--widget_width);
    height: var(--widget_height);
    border: 2px solid var(--battery_color);
    border-radius: 5px;
    padding: 4px;
    box-sizing: border-box;
  }
  .battery:after{
    content: ' ';
    background: var(--battery_color);
    width: 5px;
    height: calc(var(--widget_height) /2);
    position: absolute;
    right: 5px;
    border-radius: 0px 2px 2px 0px;
    top: 24%;
  }
  .battery-level{
	position: absolute;
    top: 0;
    left: 0;
    width: 100%;
    font-size: var(--font-size);
    height: 100%;
    vertical-align: middle;
    line-height: var(--widget_height);
    text-align: center;
    color: var(--battery_color);
  }
  .juice{
    height:100%;
    float: left;
  }

  .juice-alert {
    background:var(--juice_alert_color);
    animation: blinky 1s ease-in-out infinite;
    animation-delay: 2s;
  }

  .juice-inter {
    background:var(--juice_inter_color);
  }

  .juice-ok {
    background:var(--juice_ok_color);
  }

  @keyframes blinky {
    0% {background:transparent;}
    49% {background:transparent;}
    50% {background:var(--juice_alert_color);}
  }
</style>
<script>


  function getOpositeColor(rgb,darkcolor,lightcolor) { // Like this : rgb(0, 0, 0);
    while (rgb.indexOf(' ') != -1) rgb = rgb.replace(' ', '');
    //Check if is formatted as RGB
    if ((x = /([0-9]{0,3}),([0-9]{0,3}),([0-9]{0,3})/.exec(rgb))) {
        //Extract colors
        color = {
            'r': parseInt(x[1]),
            'g': parseInt(x[2]),
            'b': parseInt(x[3])
        };
        //If is this operation be <= 128 return white, others else return black
        OpositeColor = ((0.3 * (color['r'])) + (0.59 * (color['g'])) + (0.11 * (color['b'])) <= 128) ? lightcolor : darkcolor;
        return OpositeColor;
    }
    return -1;
 }

  jeedom.cmd.update['#id#'] = function(_options) {
    var cmd = $('.cmd[data-cmd_id=#id#]');
    var percentage_value = _options.display_value;

    cmd.find('.juice').attr('style', 'width:' + (percentage_value == 0 ? '5' : percentage_value) + '%;');
    cmd.find('.battery-level').html(percentage_value+"%");
    if (percentage_value >=0 && percentage_value<=10){
    	cmd.find('.juice').removeClass('juice-ok juice-inter');
      	cmd.find('.juice').addClass('juice-alert');
        cmd.find('.battery-level').css('color',cmd.find('.battery').css("border-color"));
    } else if (percentage_value >=11 && percentage_value<=45){
      	cmd.find('.juice').removeClass('juice-ok juice-alert');
      	cmd.find('.juice').addClass('juice-inter');
        cmd.find('.battery-level').css('color',getOpositeColor(cmd.find('.juice').css("background-color"),cmd.find('.battery').css("border-color"),"#FFF"));
    } else {
    	cmd.find('.juice').removeClass('juice-inter juice-alert');
      	cmd.find('.juice').addClass('juice-ok');
        cmd.find('.battery-level').css('color',getOpositeColor(cmd.find('.juice').css("background-color"),cmd.find('.battery').css("border-color"),"#FFF"));
    }

  }

  jeedom.cmd.update['#id#']({display_value:'#state#',valueDate:'#valueDate#',collectDate:'#collectDate#',alertLevel:'#alertLevel#'});
</script>
</div>


Bonjour
merci d’avoir répondu
Super ca a marché
je vois que vous aviez changé
width: calc(var(–widget_width) + 20px); vous avez mit 10px au lieu de 20 px et bingo tout est nikel
merci infiniment vous m’aviez sauvé.
bonne journée
